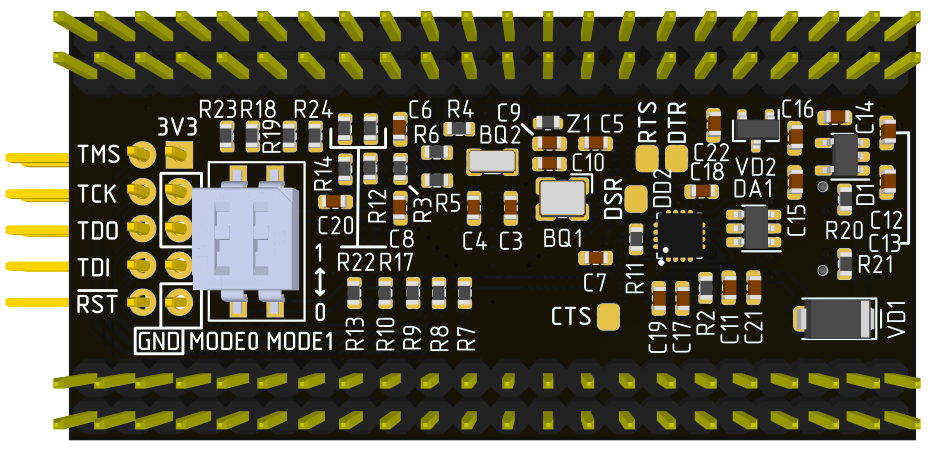

IRL1206FI EVB is a small , complete board based on the IRL1206FI MCU featuring a 32-bit RISC-V core running at 50 MHz.
Debugging interface JTAG:
Buttons, switches:
- SB1: reset button "RST";
- SB2: user button "PD14";
- «MODE0, MODE1»: Selecting boot and debug modes.
LED:
- Power LED "PWR";
- User LED "PD15”.
External oscillators:
- BQ1: 8 МГц (HSE);
- BQ2: 32,768 кГц (LSE).
Connectors:
- XP3: JTAG (for debugging, not installed);
- XP8: USB Type-C for power supply, for programming).
Other components:
- DD2: converter USB-UART СH343P, for programming via UART (PB[0]: TX, PB[1]: RX);
- D1: LDO:
Package: SOT-23-5;
Vin: 3,6-5,5 V;
Vout: 3,3 V, 300 mA.
Power supply options:
- Supply via USB Type-C (5 V);
- Supply 3,3 V to any 3V3 pin;
- Supply 5 V to any 5V.
Dimensions: 59×30×8 mm
Programming and debugging tools:
- Programmers such as J-Link, IAR I-jet etc.
- IAR I-jet operates with IDE IAR Embedded Workbench for RISC-V.
- J-Link and others - IDE Eclipse, VS-CODE (via OpenOCD).
Package include: Evaluation Board, PLD-44 - 2 pc., PLD-10R - 1 pc. – in antistatic zip-lock.
