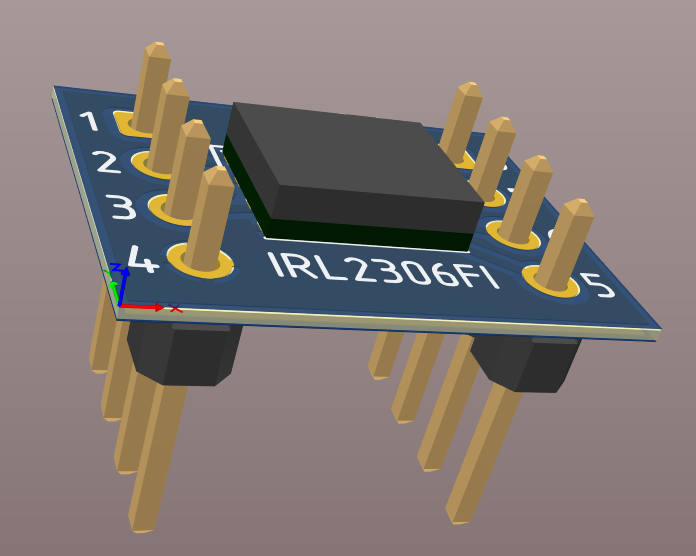

IRL2306FI dip adapter board is a small circuit board that lets you convert a tiny surface-mount DFN8 chip into a large and convinient DIP with 10.16 row spacing, making it easy to use on breadboards or regular sockets.
Breadboard Friendly:
- Uses standard 2.54mm (0.1 inch) pin spacing. Solder standard 2.54mm male header pins (included) into the outer holes of the adapter, then insert the board into a breadboard, IC socket, or prototype board or use Dupont wires.
Main features:
- Сapacity 64 Mbit;
- Serial SPI interface with support for dual-SPI and quad-SPI modes, with a clock frequency of up to 100 MHz;
- 20,000 data program/erase cycles;
- Supply voltage: 1,8-3,6 V;

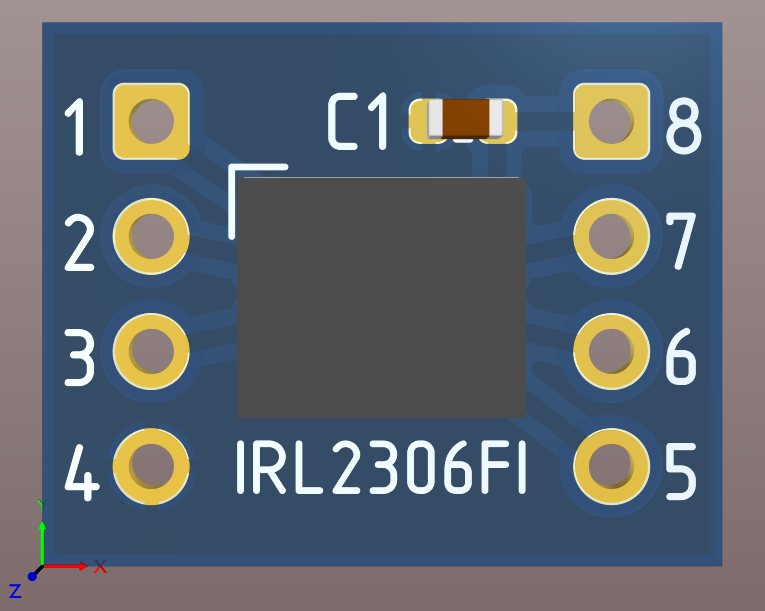

- Build in 100nF decoupling capacitor (C1);
- Current in low power consumption mode: less than 200 μA;
- Dynamic current consumption: less than 20 mA.
Dimensions: 15×12 mm
Package includes: Adapter board, PLS-4 - 2 pc., – in antistatic zip-lock.
