IRL3401FI

Interface RS-485/422

Data rate 30 Mbps

Operating temperature range (°C) -40 to 85

Application Industrial (robots), factory (PLC, Solar panels)

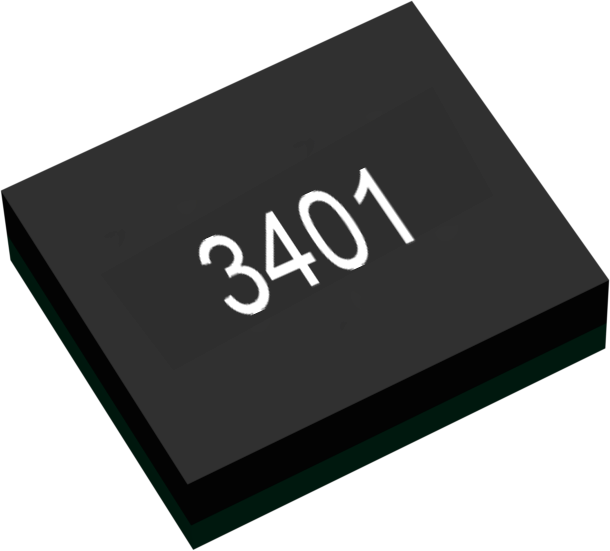

Package DFN

Pins 8

Size (mm) 5х6х1,6 (1,27)

Operates from a single 3.0-5.5V supply
20µ low current shutdown mode max
Guaranteed 30 Mbps data rate
-7 to 12 common mode input voltage range
Current limiting and thermal shutdown for driver overload protection
Guaranteed high receiver output state for floating, shorted or terminated inputs with no signal present
Allows up to 256 transceivers on the bus
Industry standard 75176 pinout

The IRL3401FI is a transceiver for RS-485 and RS-422 communications. The device contains one driver and one receiver in half duplex configuration.

The IRL3401FI transmits and receives at a guaranteed data rate of 30Mbps.

Driver is short-circuit current limited and is protected against excessive power dissipation by thermal shutdown circuitry.

Hardware development

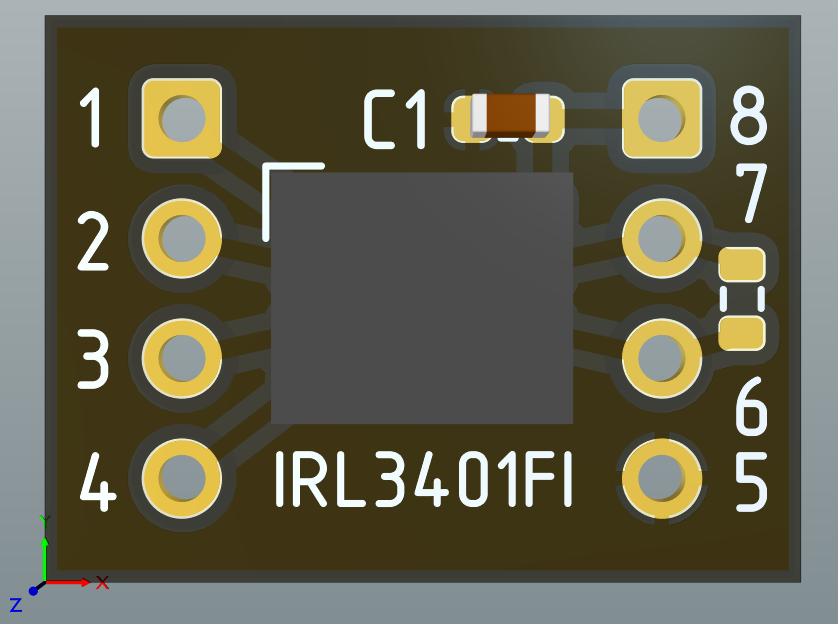

Evaluation board IRL3401FI - IRL3401FI dip adapter board is a small circuit board that lets you convert a tiny surface-mount DFN8 chip into a large and convinient DIP with 10.16 row spacing, making it easy to use on breadboards or regular sockets.

CAD symbols, footprints & 3D models

Altium IRL3401FI.zip

DOWNLOAD

DFN8 5x6x1,6 (1,27).STEP

DOWNLOAD

Altium IRL3401FI.zip

DOWNLOAD

DFN8 5x6x1,6 (1,27).STEP

DOWNLOAD
