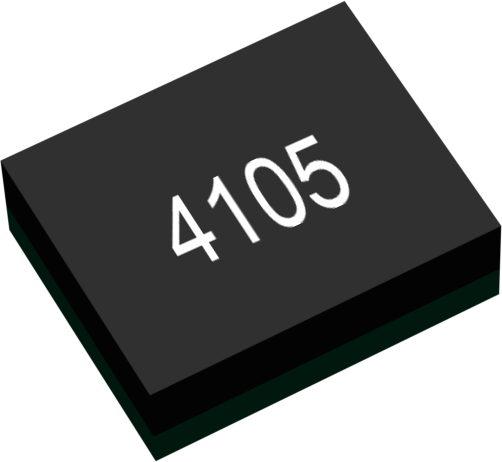

IRL4105FI

DC input voltage 5.5V to 40V

Output voltage (nom) 5V

Operating temperature (°C) -40 to 85

Application Automotive

Package DFN

Pins 8

Size (mm) 5х6х1,6 (1,27)

DC input voltage 5.5V to 40V
Output voltage (nom) 5V
Output voltage tolerance: 2%
400 mA guaranteed output current
Dropout voltage (200mV at 100mA load)
Quiescent current consumption 80µA
20µ low current shutdown mode max
Thermal shutdown
Immunity against pulse 2a ISO7637-2
Thermal resistance junction ambient 26°C/W

The IRL4105FI is a linear low dropout voltage for load currents up to 400 mA.

It features a low dropout voltage of 200mV at 100mA load. An input voltage varying from 5 to 40 V is regulated to 5V with ±2% accuracy. A typical quiescent current is 38µA. IRL4501FI is designed to be used in automotive applications.

Extended input voltage up to 40 V makes the device capable to sustain a load dump transient characteristic of automotive systems.
