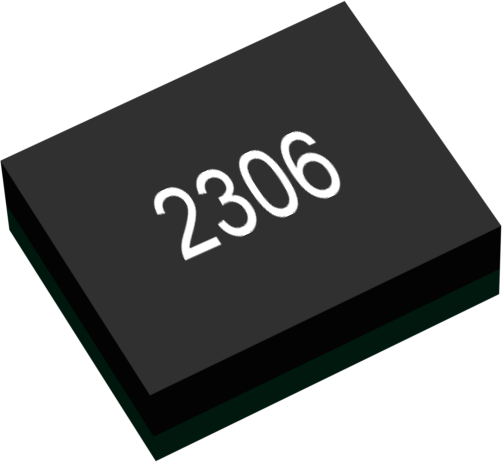

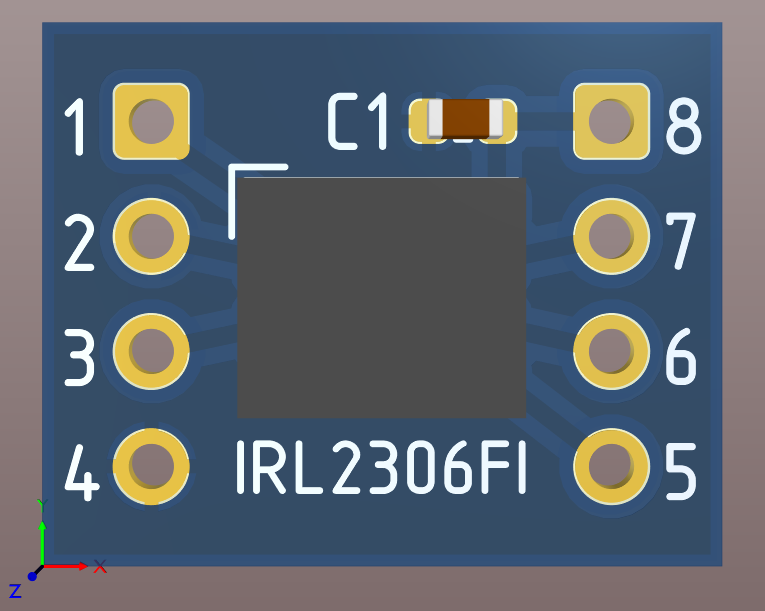

IRL2306FI

• Single Power Supply Voltage
• Full voltage range 1.8 – 3.6 V



• Advanced Security Features:
• Error detection and correction Hamming (39, 32);
• Data lock protection;
• Hardware write protection



• 64M-bit Serial Flash

- 1024 Sectors of 8KB each;

- 4 blocks of 2MB each;

- 512 Bytes per programmable page



• Standard, Dual, Quad SPI (Mode 0 and Mode 3)
• Standard SPI: nCS; SCK, SDI, SDO, nWP, nHOLD
• Dual SPI: nCS; SCK, IO0, IO1, nWP, nHOLD
• Quad SPI: nCS, SCK, IO1, IO2, IO3
• Serial Clock Frequency: up to 100MHz
• Sampling time: 6ns (typ)



• Sector/Block/Chip Erase
• Program/Erase Suspend to access another block/sector
• Auto Erase and Auto Program Algorithm
• Automatically erases and verifies data at selected page, sector, chip;
• Automatically programs and verifies data at selected address
• Software detection of a completion status of a program or erase operation
• Hardware write protection for a Sector
• Support Serial Flash Discoverable Parameters (SFDP) mode
• Software Reset mode



• Power Consumption
• Power down current: not more than 400 µA
• Standby current: not more than 2 mA
• Operating current: not more than 20 mA



• ESD: up to 2kV
• Endurance: 20 000 Program/Erase Cycles
• Data retention: 20 years
• MSL: 2a
• Thermal resistance junction ambient 30°C/W
